AQUA 480 BWS
Model No.PR-2497

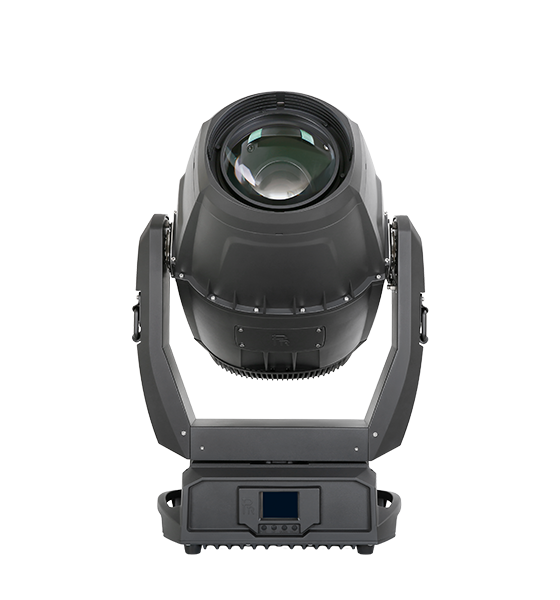

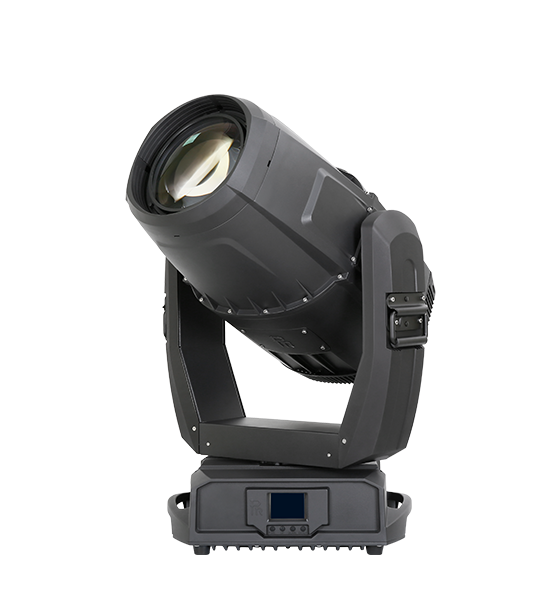

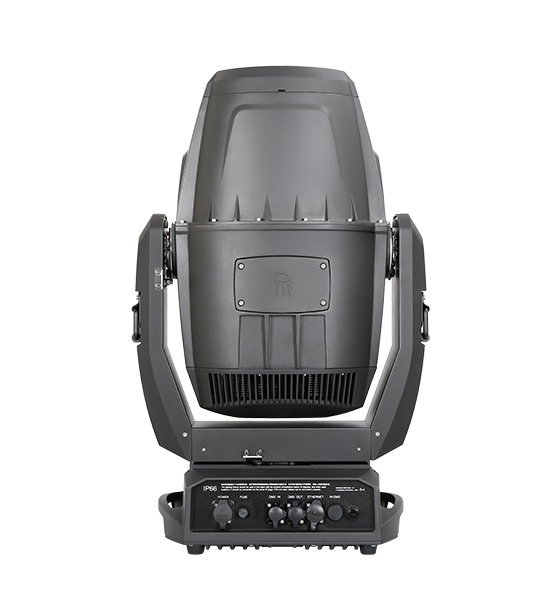

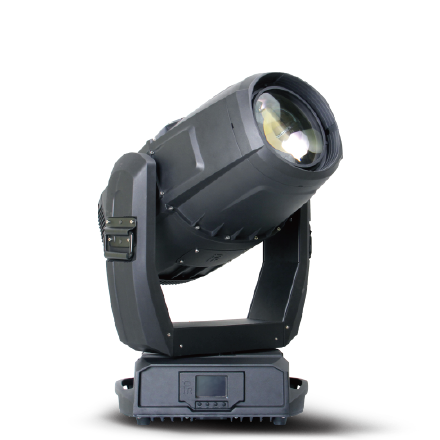

AQUA 480 BWS
AQUA 480 BWS is PR new full featured IP65 moving light, which is designed to provide three features-Beam, Wash, Spot. It has adopted PR patented technology, combines advanced 480W lamp with superb optical system, 18 fixed gobos, 7 rotating gobos, CMY color mixing system, 3 independent prisms and 1 animation wheel. It is convenient and ideal for outdoor entertainment, concert, stadium and other lighting applications.
Features
Colors
Gobo
Download
Input Voltages

Control

100-240V AC, 50/60Hz

International DMX512, 5 pins interface


RDM control protocol

Power Consumption

Short mode 22 channels, standard mode 30 channels and extended mode 34 channels

650W@220V

Self-test mode



Light Source

Other Functions

USHIO PR 480(480W), (6,900±300K, 1,500 hrs)

Adjustable pan & tilt speed


LCD display screen

Strobe

Fixture and lamp usage time display

Double shutter blades, 0.3-25 F.P.S

Modular structure for easy maintenance


DMX512 wireless receiver

Dimmer

DMX512 wireless transmitter(optional)

0-100% linearly dimming



Physical

CTO

Housing: cast aluminum and high temperature UV resistant ABS, IP65

Independent 0-100% linear CTO

Ambient temperature: maximum 42°C



Prism/Frost

Weight

Three prisms(standard: 2x8-facet circular prisms and 1x4-facet linear prism)+frost+open,

Net weight: 43.5Kg

bi-directional rotation with variable speeds


Optional: 3-facet, 16-facet circular/linear/gradient prisms

Packaging


Standard: carton 760x740x670(mm)

Focus

Optional: flight case 620x570x780(mm)

DMX linear focus



Accessories

Zoom

G clamp, 2 pcs

DMX linear zoom

5 Pins XLR connector, 1 set


Safety cord, 1 pc

Head Movement

Power cord, 1 pc

Pan 540°, tilt 270° with auto position correction

Optional: Ω clamp, 2 pcs


Light Angle


Beam mode: 0°~2.8°


Spot mode: 2.8°~60°


Wash mode: 10°~60°











CMY


CMY linear color mixing system with macros







Color Wheel


1 Color wheel: 12 dichroic color filters plus open



Rainbow effect with bi-directional and variable speeds



Stepping/linear color changing




Fixed Gobo



1 Fixed gobo wheel: 18 gobos plus open



Bi-directionally rotatable, and shakable effect at variable speeds







Rotating Gobo



1 Rotating gobo wheel: 7 interchangeable gobos plus open


Bi-directionally rotatable, and shakable at variable speeds







Name
Description
Download
Specification
AQUA 480 BWS Spec
User manual
AQUA 480 BWS
Certificates
AQUA 480 BWS CE
DWG
AQUA 480 BWS DWG
Lighting Library
MA2,Avolites
