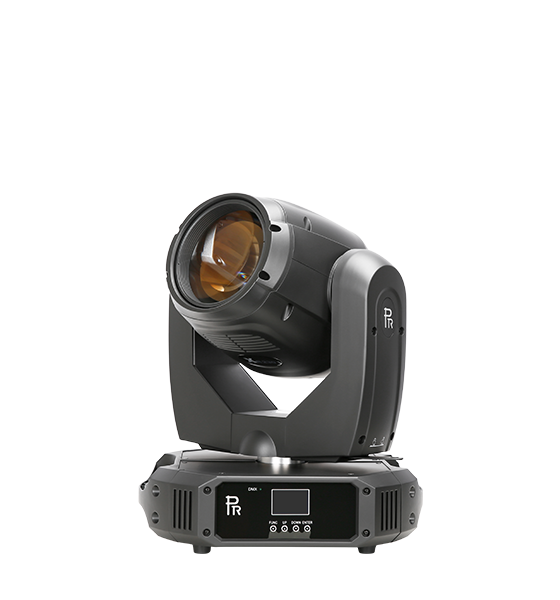

XR 230 Beam
Model No.PR-2205
XR 230 Beam
Equipped with OSRAM 230 HRI lamp, moving beam light with a brightness usually achievable only with far greater wattages, weighing only 16 kg, it produces a perfectly parallel, laser-like beam with an incredible output of 68,600 lx at 20m.
Features
Colors
Gobo
Download
Light Source

Channels

OSRAM SIRIUS HRI 230W(8,000K), 2000 hrsShort mode 10 channels, standard mode 14 channels and extended mode 16 channels



Input Voltages

Other Functions

100V~240V AC, 50/60Hz

DMX512 wireless receiver, (optional: DMX512 wireless transmitter)




Power Consumption

Housing

310W@220V

High temperature resistant engineering plastics


IP20
Strobe



Double shutter blades, 0.3-20 F.P.S
Net Weight


16kg

Dimmer



0-100% linearly adjustable





Prism



1x 8-facet prism +CTO +frost filter plus open, bi-directional with variable speeds






Focus


DMX linear focus



Light Angle









Head Movement

Pan 540º and tilt 270º with auto position correction and adjustable speed






Control


DMX512, 5 pins(optional 3 pins) intereface



Color Wheel


1 Color Wheel: 14 colors+CTO plus open


Rainbow effect with bi-directional and variable speeds


Stepping/linear color changing



Fixed Gobo



1 Fixed Gobo Wheel: 17 replaceable gobos plus open

Shaking at variable speed and bi-directional scrolling effect


















Name
Description
Download
Specification
XR 230 Beam Spec
User manual
XR 230 Beam
