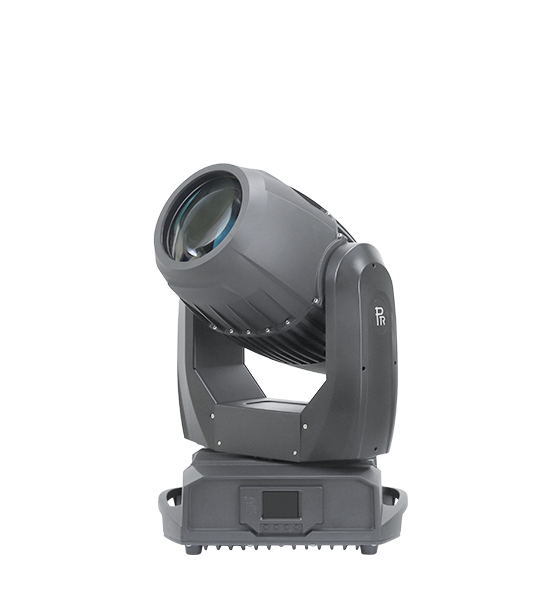

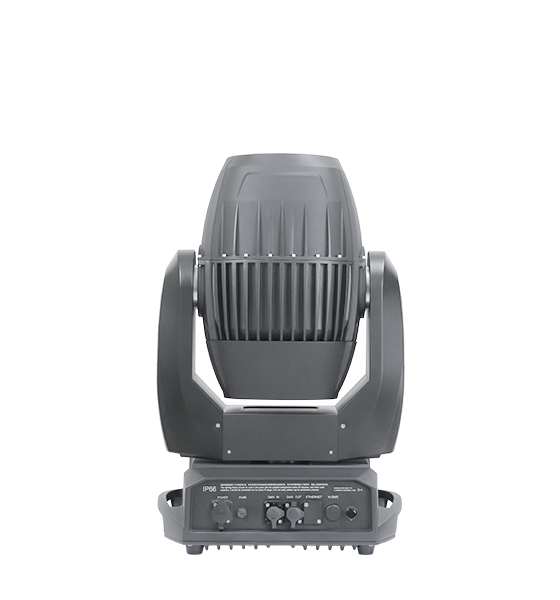

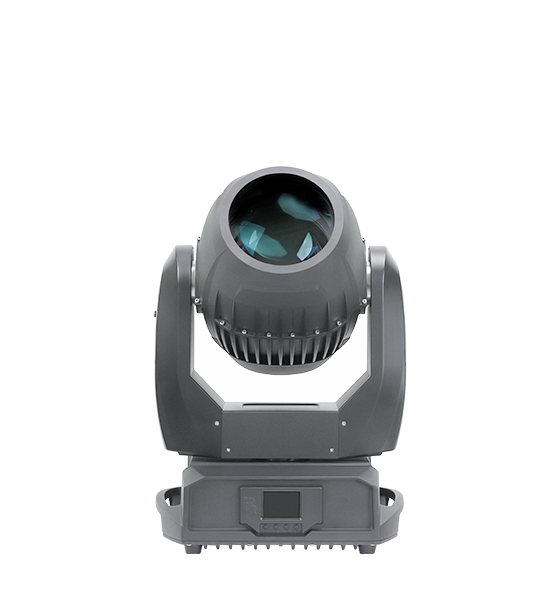

AQUA Laser 120 BEAM
Model No.PR-8319
AQUA Laser 120 BEAM
Aqua Laser 120 Beam (PR-8319)is a trendy, energy-saving, environmentally friendly and water-proof fixture with a laser engine as its light source, having a super-wide front lens of 160mm, a full and saturated beam with sharp edges and the angle of 0.8°~5°. It has very strong beam and cubic effects with high intensity and much longer projecting distance. Being close to parallel beam makes it have very high intensity, other characteristics of beam fixtures and up to 140000lux at a distance of 20 meters ,surpassing traditional light sources. Its light source has long life-span, low intensity aging, low emitting heat, low power consumption, high luminous efficacy , instantaneous striking without cooling and other advantages. As for dimmer, strobe and other effects, it has some advantages which can’t be exceeded by HID light sources. The fixture is an all-weather product with ingress protection of IP66. It’s a waterproof fixture with high power laser as its light source for landscaping, architectural and cultural projects, big concerts, stadiums and entertainment markets.
Features
Colors
Gobo wheels
Download

Electric parameters
Input voltage: 100V~240V AC,50/60Hz
Power consumption:230W @ 220V
Rated current: 1.1 A /220V
Power factor: PF>0.9

Light sources
Light sources:120W laser module
Color temperature:9000K
CRI: Ra≥75
Rated life:12000hrs

Prism/frost:
3 prisms (an 8-facet circular prism+ a 4-facet linear prism ) (a 16-facet circular prism + a
frost filter)
prisms can be overlapped. Other prism options available.

Focus
DMX linear focus

Strobe/Dimmer
Double flag strobe,0.3-25Hz / linear dimmer

Movements
Pan (0°-540°),Tilt( 0°-270°) with auto positioning correction function

Beam angle
Beam angle:0.8°~5°
Control
International standard DMX 512 signal ,5-pin XLR connectors
Short Mode15 channels,standard Mode 17 channels, extended mode 18 channels
Self test mode

Other functions
Pan and Tilt speeds adjustable
Light source hours and fixture hours displayed
Modular construction easy for maintenance
Wireless receiver
Wireless transmitter  ( Optional)
ArtNet control( Optional)

Housing and ingress protection
Cast aluminum and high temperature and UV resistant ABS with IP66

Weight
Net weight:26 Kg

Ambient temperature
45 °C at maximum
Note: If the ambient temperature is below 0°C, preheat the fixture for some time( less than 20 min based on actual situation normally) before striking the light source





  【Version:20250624】

1 color wheel: 18 colors + open
Macros and bi-directional rainbow effects with variable speeds

1 fixed gobo wheel: 30gobos
Shakable at variable speeds and
bi-directional rotation at variable speeds

Name
Description
Download
Specification
PR-8319 Version:20250624
User manual
PR-8319 Version:20250624
