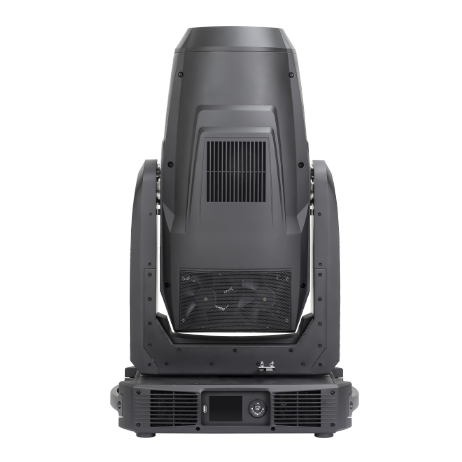

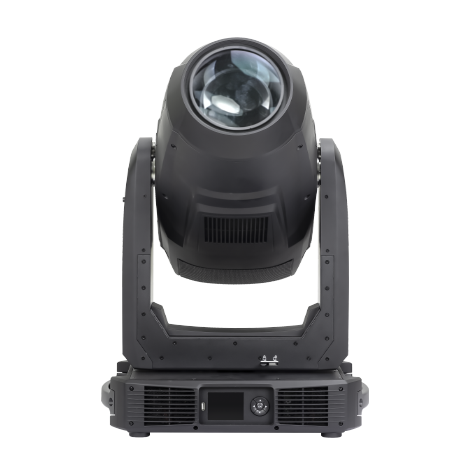

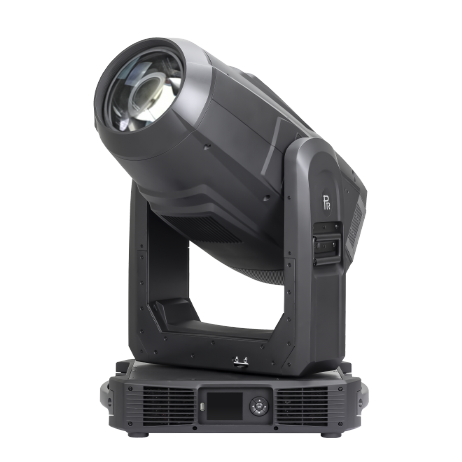

XR 1400 Framing
Model No.PR-2737
XR 1400 Framing
A fully featured OSRAM 1400W engine moving Framing fixture, the XR 1400 Framing is powerful enough to handle the demands of large concert venues, stadium, arena etc. The XR 1400 Framing fixture houses a 5° – 55° motorized zoom, two rotating gobo wheels – each 6 interchangeable gobos plus open, glass gobos or metal gobos and one color wheel with 7 solid colors plus open allow for precise color shade adjustment. A full blackout framing system with 4 rotating blades gives full control of the beam shape and can rotate endlessly. Its comprehensive feature set includes two variable frost filter, motorized iris, and high speed electronic shutter and strobe.
Features
Download
Input voltage

Advanced macros

208V~240V AC50/60Hz

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K


Standard color macros: 89 color options based on standard color chart

Input power


1800W@220V

Fixture types


Including moving head light, fixed-focus profile light, zoom profile light

Light source

Moving head light with beam angle range: 4-50°

OSRAM  lok-it  1400/PS

Fixed focus profile light with beam angle options including 4°,10°,19°,26°,36°,50°


Zoom profile light with beam angle ranges including 4-15°,15-35°,35-50°

Cto


0-100% Linear CTO system

Control


International standard DMX512 signal and RDM function

Prism

Art Net protocol(optional) , sACN protocol(optional), DMX512 wireless control

1pc 3-facet circular prism and 1pc 4 facet linear prism, indexing

41channels in basic mode, 45channels in standard mode , 60channels in extended mode

bi-directional rotation with variable speeds

Self-test mode



Frost

Control interface

2pc frost filters(1 light frost filter and 1 heavy frost filter), 0-100%linear adjustment

DMX512 ports5-pin


Ethernet port RJ45

Effect wheel


1 dynamic effect wheel, rotatable in both directions

Other functions


Adjustable Pan & Tilt speeds

Focus

Lamps and fixtures hours displayed

DMX linear Focus with auto focus function

Color touch screen, Chinese and English menus, brightness and contrast adjustable


Energy saving ballast

Dimmer

Sensor diagnostic system for errors

0-100% Linearly adjustable

Input signal isolated, modular construction and DMX channel power level monitoring

Two dimmer curve options: linear and inverse square law

Non-tangible mangentic sensor for positioning, signal feedback and absolute position saving

The latter has wider dimmer range and more smooth dimming in dark places

Auto-positioning after power off or DMX signal loss


Firmware upgrade via DMX link

Iris


5-100%linear adjustment with macro

Physical


High temperature resistant engineering plastic with IP20

Strobe

40°C at maximum

Double blade strobe, 0.3-25 F.P.S




Head movement

Weight

Pan 540º, Tilt 270º with auto position correction

44.5KG


Beam angle

Linear zoom 4°~ 50° with 16 bit adjustment








Name
Description
Download
Specification
XR 1400 Framing Spec
User manual
XR 1400 Framing
Lighting Library
MA2,Avolites
