JNR FRESNEL 300AZ-C
Model No.JNR-8143A

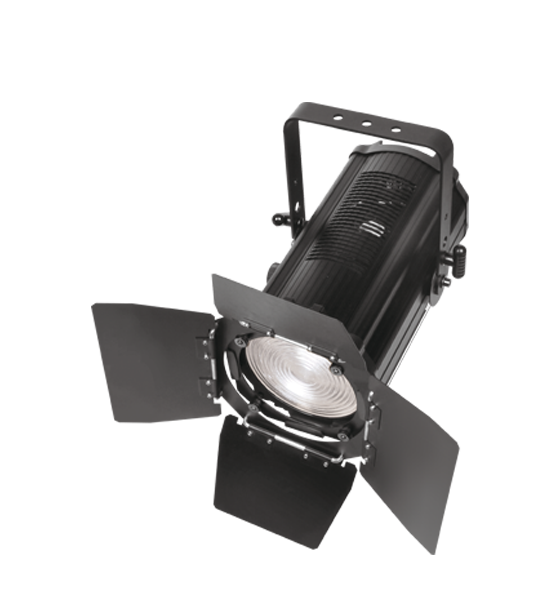

JNR FRESNEL 300AZ-C
The JNR FRESNEL 300AZ-C is made of a new type of high temperature strength of cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol.
Features
Colors
Download
Light Source

Channels

300W COB LED (available for cool white), 50,000 hrs
2/5 DMX channels USITT DMX-512



Input Voltages

Connections

AC90-260V 50/60Hz

3-Pin and 5-pin XLR connectors IN/OUT


POWRECON connector IN/OUT

Power Consumption



390W
Other Functions


4-Button LCD display
Strobe

Low noise fan integrated with copper liquid cooling system
25T/sec high speed shutter/strobe effect with variable speed


Housing
Dimmer

Housing made by rugged, die cast aluminum alloy
0-100% Smooth and precise linear dimmerIP20




CRI

Net Weight

Ra≥929.5kg




Light Angle

Accessories

Manual zoom system from 15°-50°Barn door included


Color frame as optional

Installation

1*Safety attachment point

Thermally insulated knobs and single aluminum handle for installing





Control



DMX512, master-slave, and sound activated controllable or auto operation




  • Color System

    Cool White


    Color frame as optional






















Name
Description
Download
Specification
JNR-8143A
User manual
JNR-8143A
