JNR PAR ZOOM 3615
Model No.JNR-8134B

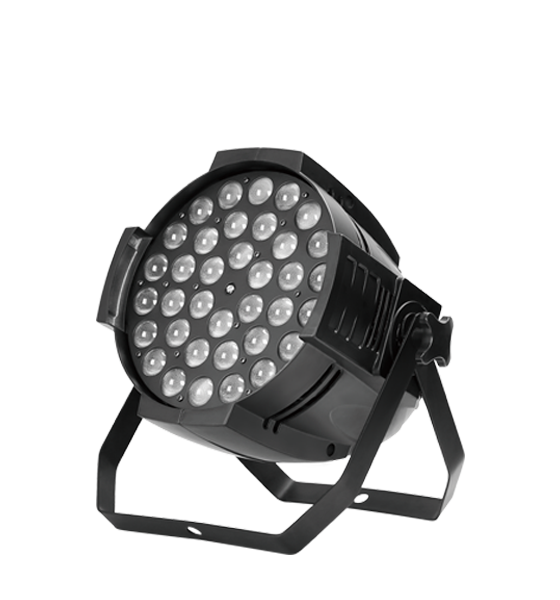

JNR PAR ZOOM 3615
The JNR PAR ZOOM 3615 adopts 36 PCS 15W 5-in-1 LEDs is designed and manufactured strictly following CE standards, complying with international standard OM×512 protocol. It’ s available independently controlled and linkable with each other for operation.
Features
Colors
Download
Light Source

Channels

36x15W LEDs (5-in-1, RGBWA), 50,000 hrs
6/10 DMX channels USITT DMX-512



Input Voltages

Other Functions

AC90-260V 50/60Hz

Power link up to 4 units at 120V and 8 units at 230V, built-in default programs, macro effects,


efficient low noise cooling system
Power Consumption



480W
Housing


IP20

Strobe



Strobe effect with 1-25T/s and pulse effectNet Weight


4.5kg

Dimmer



0-100% Smooth LED dimmer




Light Angle



Motorized linear zoom from 8° to 60°




Control



DMX512, master-slave and sound activated controllable or auto operation











  • Color System

    LED rainbow effect


    High light output with even color mixing























Name
Description
Download
Specification
JNR-8134B
User manual
JNR-8134B
