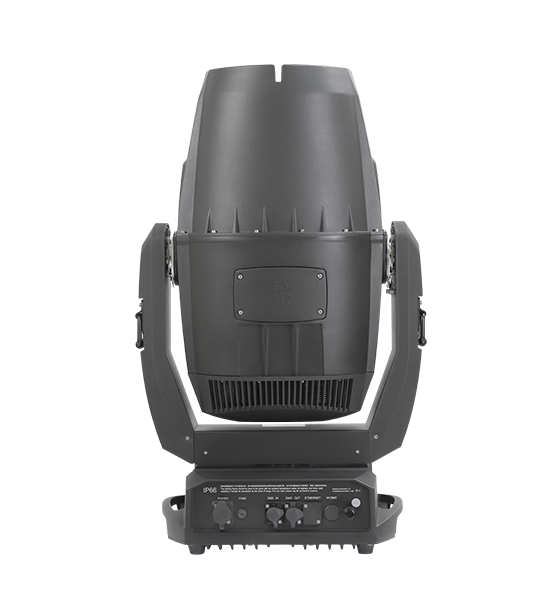

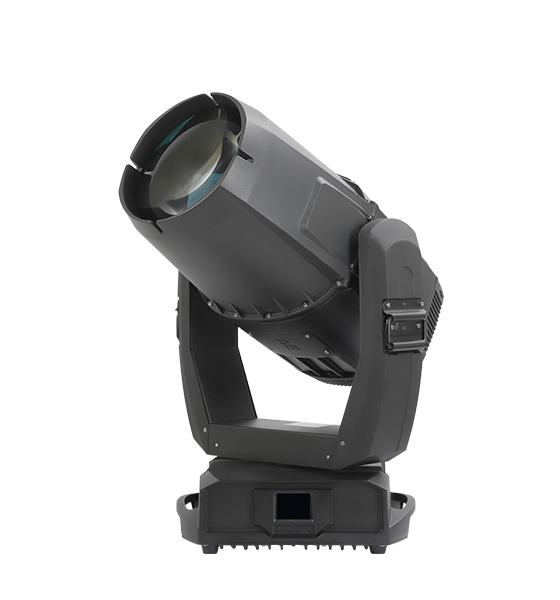

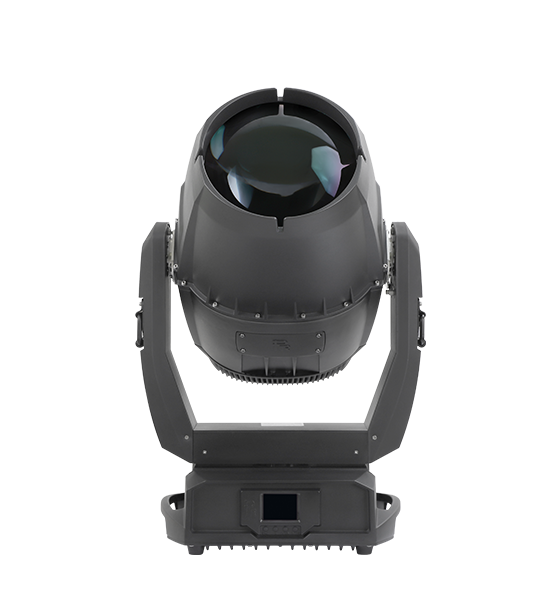

AQUA Laser 500 Beam
Model No.PR-8369
AQUA Laser 500 Beam
Aqua Laser 500 Beam (PR-8369)is a trendy, energy-saving, environmentally friendly and water-proof fixture with a laser engine as its light source, having a super-wide front lens of 230mm, a full and saturated beam with sharp edges and the angle of 0.8°. It has very strong beam and cubic effects with high intensity and much longer projecting distance. Being close to parallel beam makes it have very high intensity, other characteristics of beam fixtures and up to 760000lux at a distance of 20 meters ,surpassing traditional light sources. Its light source has long life-span, low intensity aging, low emitting heat, low power consumption, high luminous efficacy , instantaneous striking without cooling and other advantages. As for dimmer, strobe and other effects, it has some advantages which can’t be exceeded by HID light sources. The fixture is an all-weather product with ingress protection of IP66. It’s a waterproof fixture with high power laser as its light source for landscaping, architectural and cultural projects, big concerts, stadiums and entertainment markets.
Features
Colors
Gobo wheels
Download
Electric parameters
Input voltage:        100V~240V AC,50/60Hz
Power consumption:  670W @ 220V
Rated current:        3.0A  @ 220V
Power factor:         PF>0.9

Light sources
Light sources:       500W laser module
Color temperature:   9000K
Rated life:          12000hrs

Prism/frost:
2 prism wheels: 1 wheel (an 8-facet circular prism+ a 4-facet linear prism )+1 wheel (a
16-facet circular prism + a frost filter), prisms overlapped. Other prism options
17- available.

Focus
DMX linear focus

Strobe/dimmer
Double flag strobe,0.3-25 F.P.S. / linear dimmer

Movements
Pan (0°-540°),Tilt( 0°-270°) with auto positioning correction function

Beam angle
Beam angle:0.8°
Control
International standard DMX 512 signal,5-pin XLR connectors
Short Mode21 channels,standard Mode 25channels,extended mode 28channels
Self test mode

Other functions
Pan and Tilt speeds adjustable
Lamp hours and fixture hours displayed
Modular construction easy for maintenance
Wireless receiver
Wireless transmitter  ( Optional)
ArtNet and sACN  ( Optional)

Housing and ingress protection
Cast aluminum and high temperature and UV resistant ABS with IP66

Weight
Net weight:39.5 Kg

Ambient temperature
-20 °C ~ 45 °C
Note:If a fixture runs with the ambient temperature below 0 Celsius, it should be heated for some time(less than 20 minutes based on actual conditions) before turning on the laser module.






  【Version:20240311】

1 color wheel: 19 colors + open
Macros and bi-directional rainbow effects with variable speeds
A linear CYM color mixing system

1 fixed gobo wheel: 30 gobos
Shakable at variable speeds and bi-directional rotation at variable speeds

1Rotating gobo wheel: 12 gobos+ Open
Shaking and bi-directional wheel scrolling at variable speeds

Name
Description
Download
Specification
PR-8369 Version:20240311
User manual
PR-8369 Version:20240311
