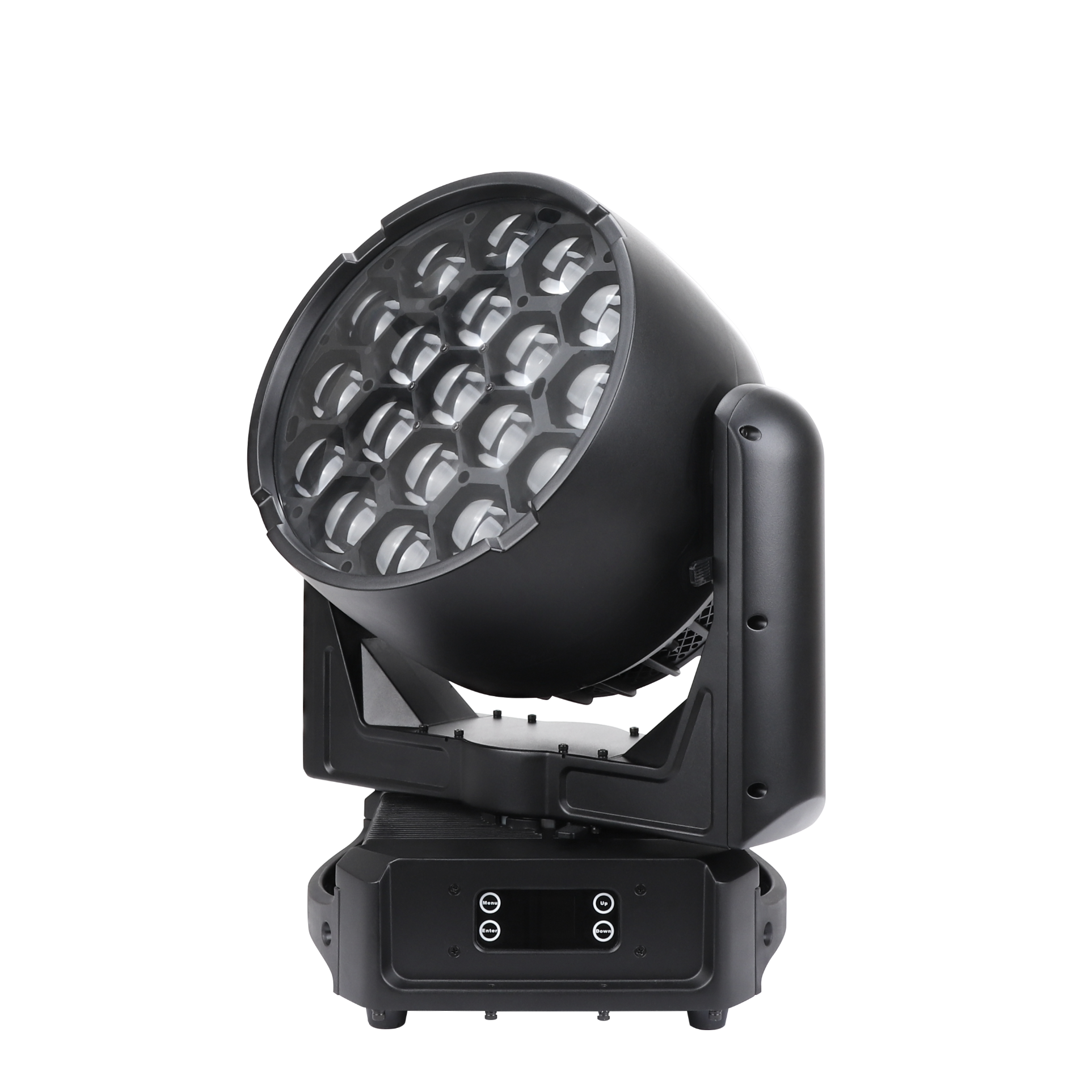

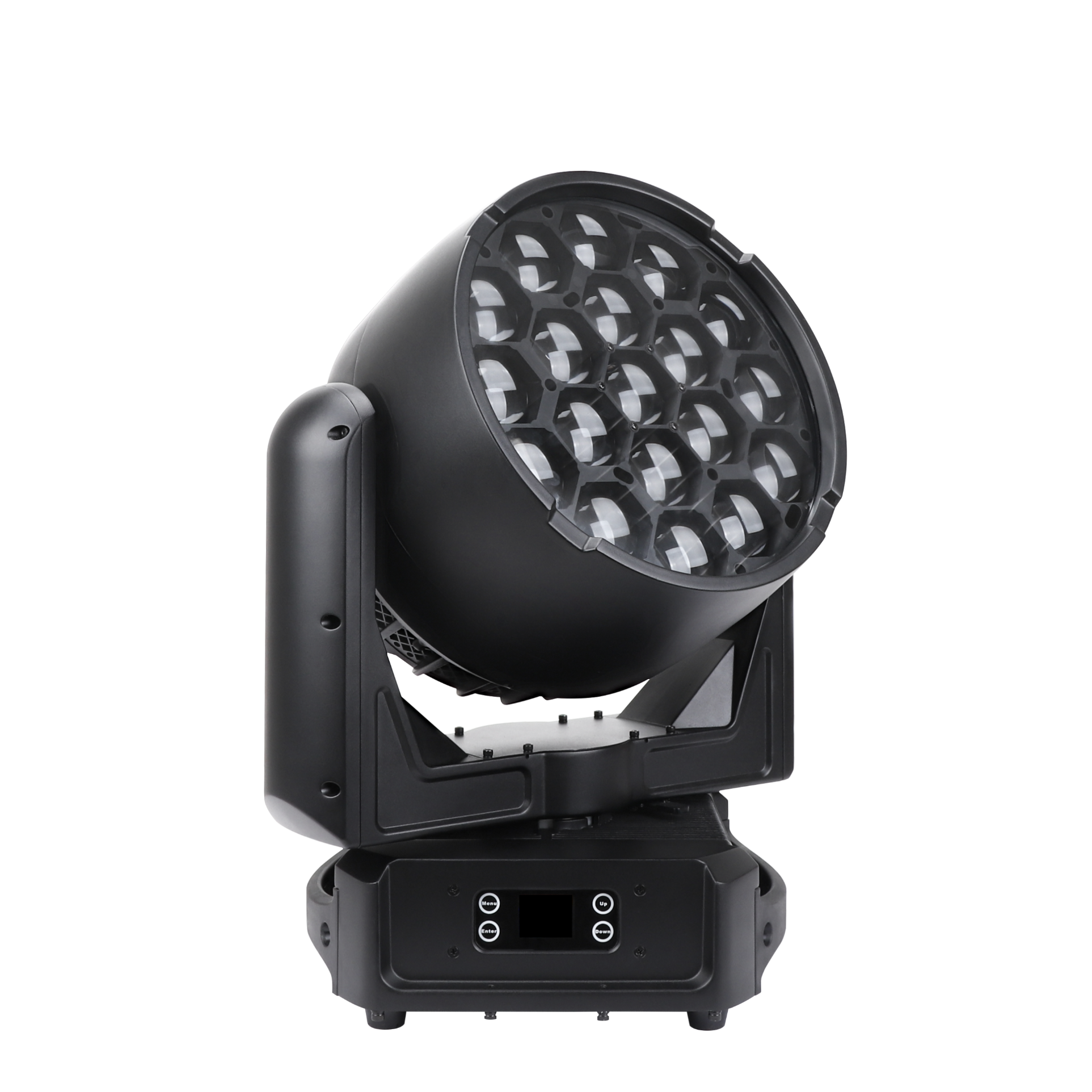

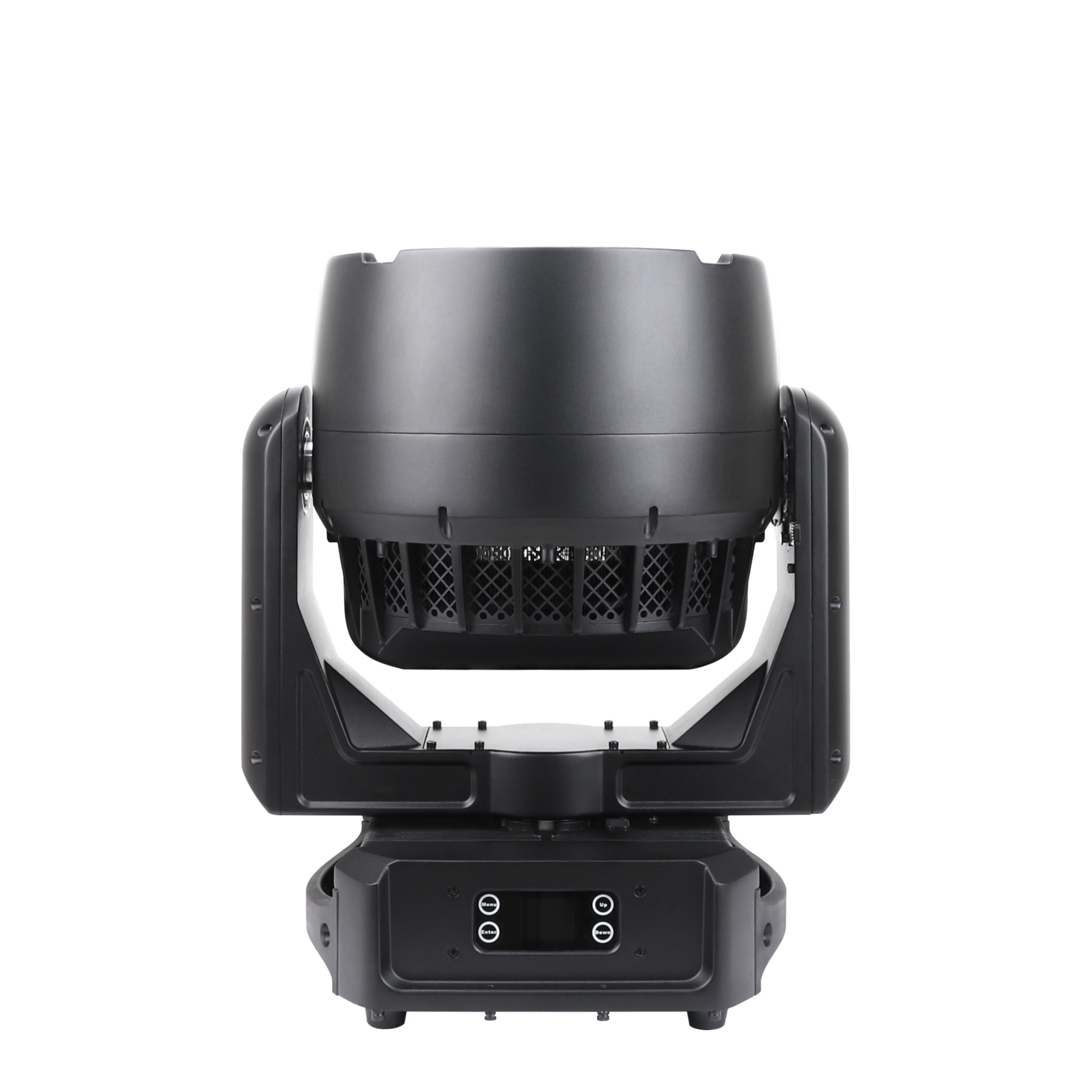

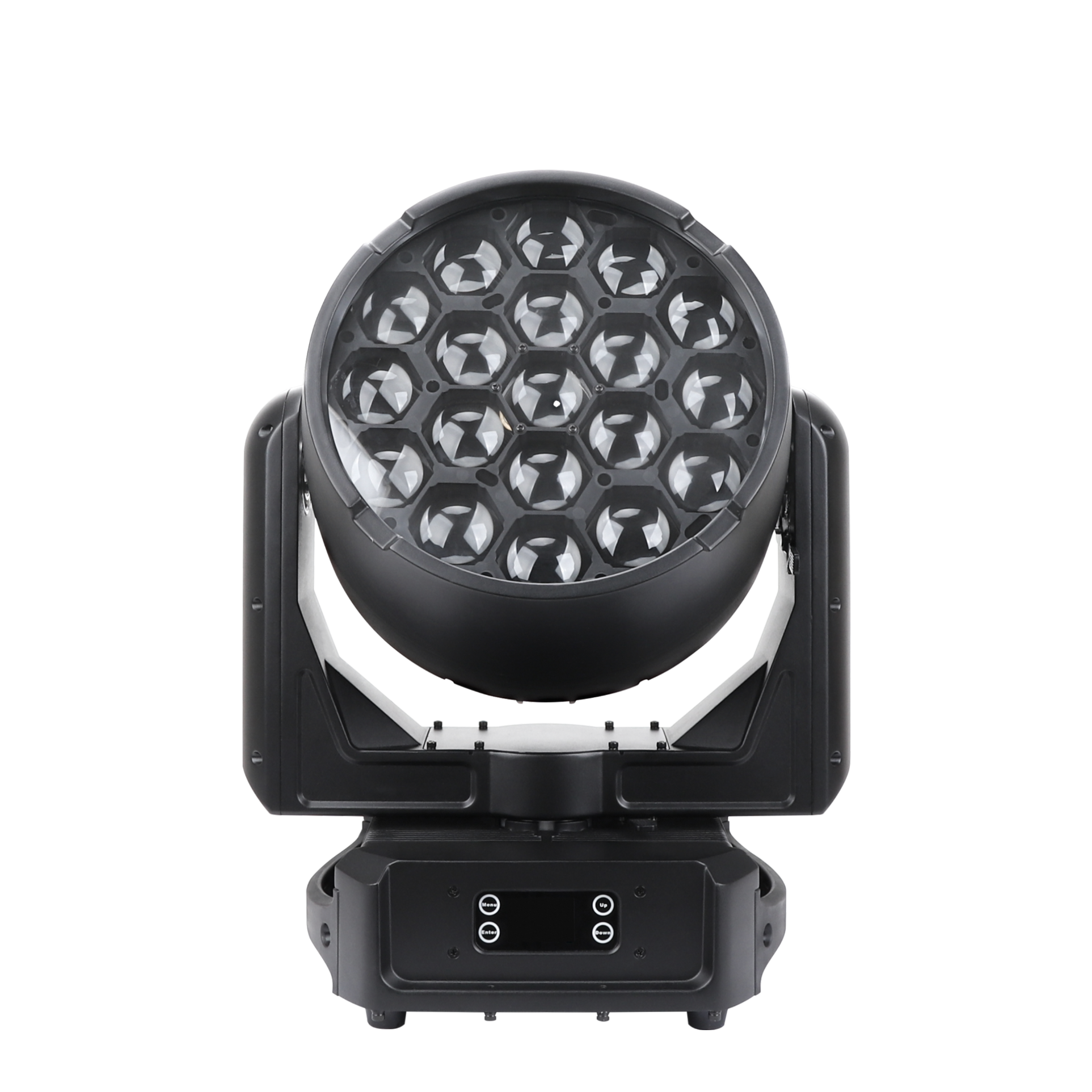

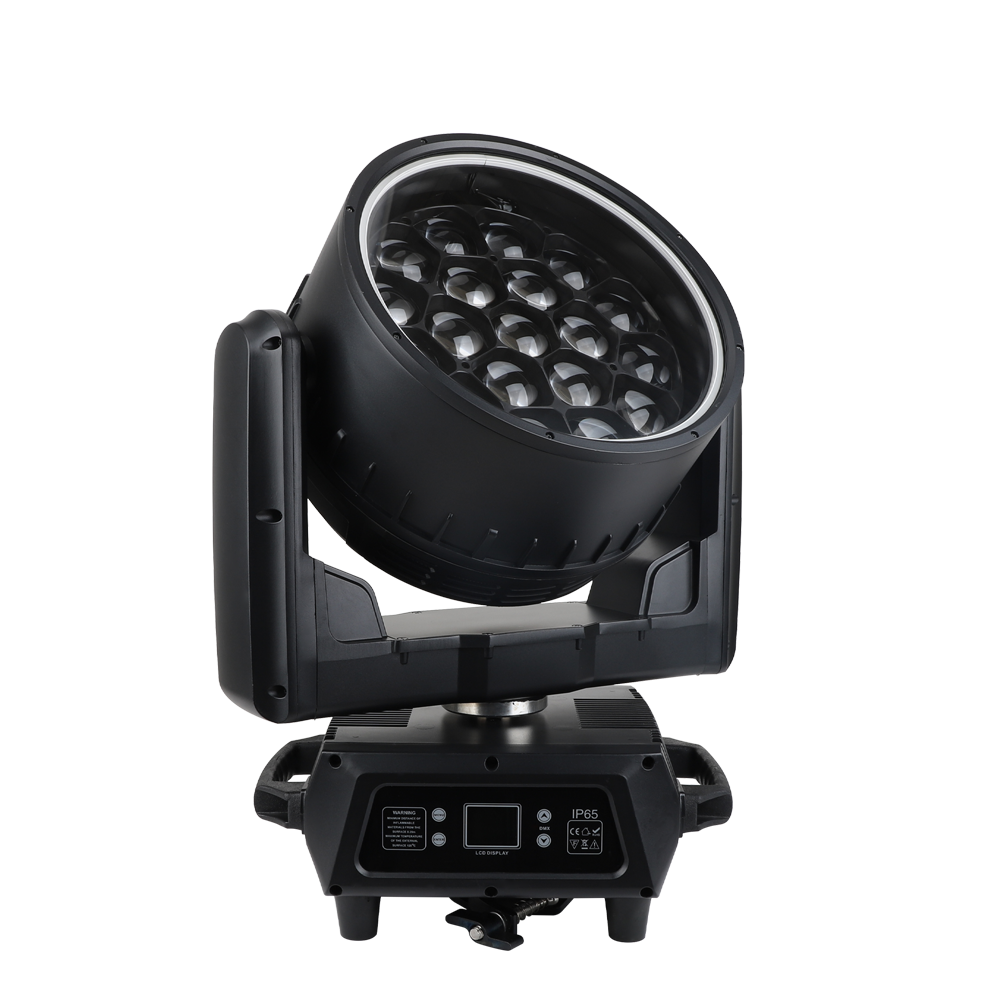

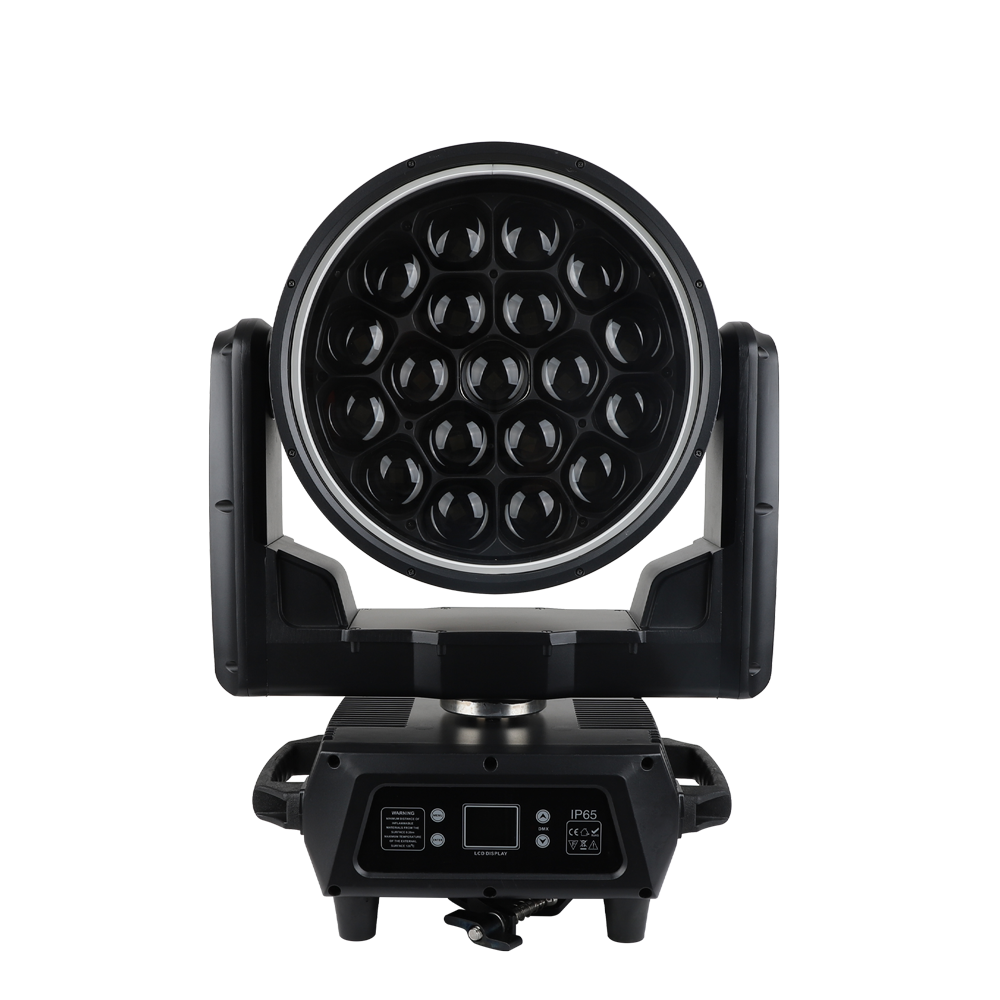

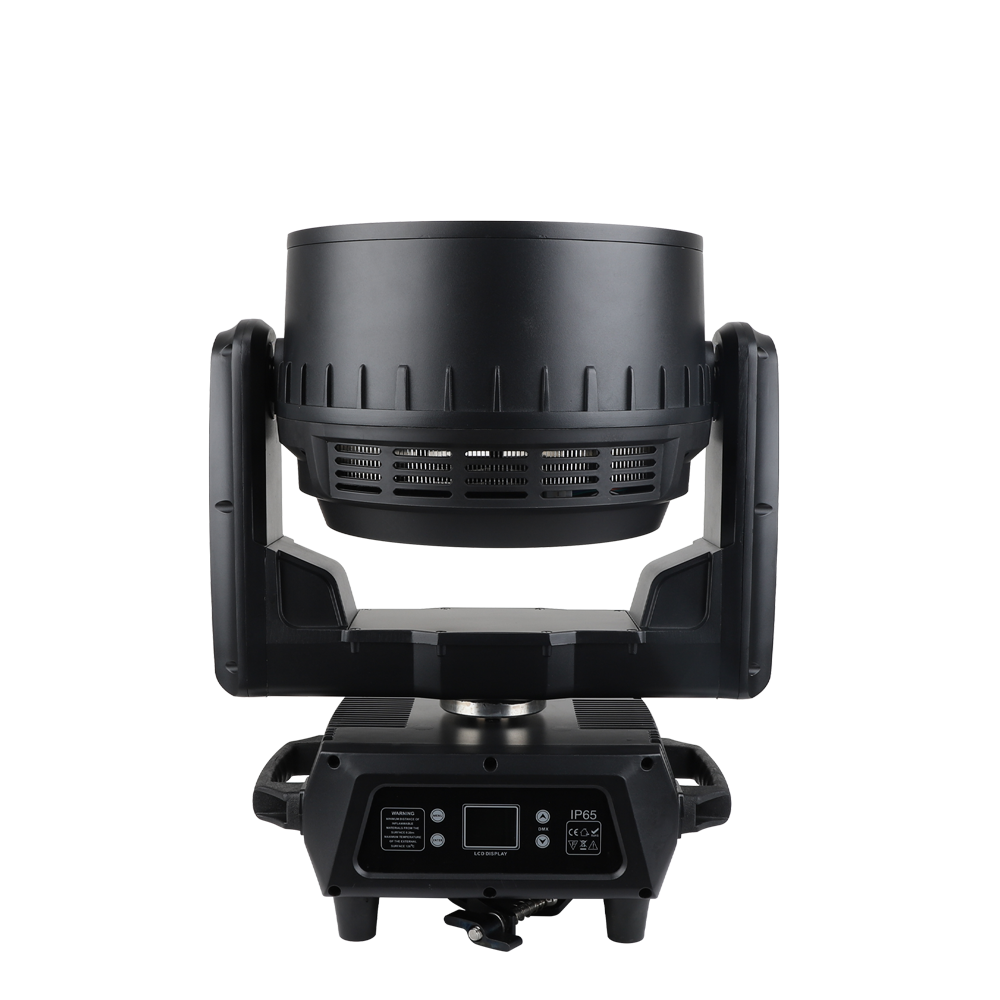

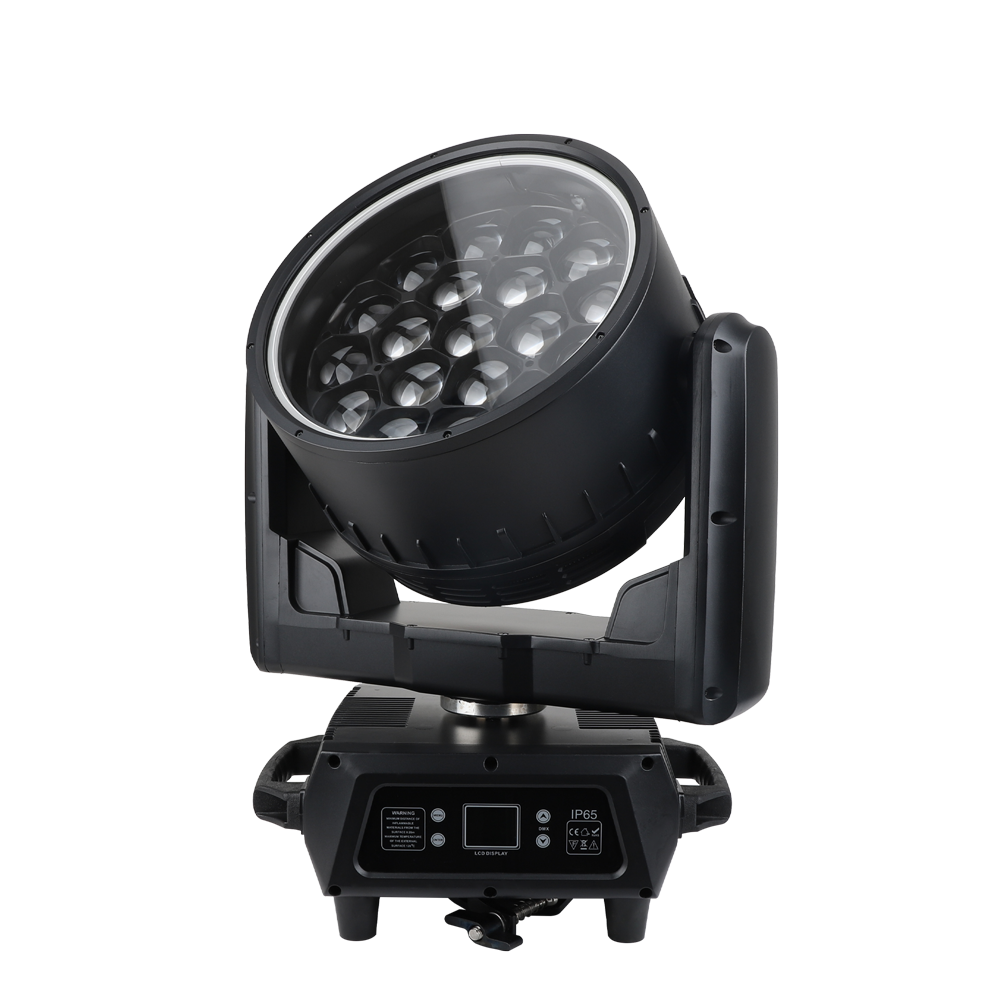

AQUA XLED 6019
Model No.PR-8229
AQUA XLED 6019
Features
Download
Electric parameters
Voltage : AC100V-240V/50-60Hz
Power : 1350W

Light source
Qty.:19×60W RGBW LED high power imported LEDs
Rated life : 50000h

Control
DMX512,RDM,Master /Slave mode

DMX channel modes
7 DMX channel modes 21CH/26CH/35CH/43CH/78CH/92CH/97CH

Pan and Tilt
Pan: 540°, Tilt:216°

Optics
Highly precise and integrated PMMA lens and highly light transmitting quartz mixing rods

Beam angle
7°~45°, linear

Beam effects
Stunning beam effect at small beam angles

Wash effects
Even wash effect at medium and big beam angles

Colors
Even RGBW color mixing without flickering ,fast rainbow effects

Color temperature
2500~10000K

Macros
Macros for static and dynamic effects

Strobe
1-25Hz, electronic strobe and random strobes

Dimmer
Electronic dimmer,4 dimmer modes

Zoom
Linear motorized zoom

Lens rotation
Continual lens rotation with kaleidoscope and canton tower effects

LED ring
Pixel control,dynamic marquee effects

Screen
1.77 inch OLED screen with Chinese/English menus ,isolated signal system to avoid interference by external light and electronics and waterproof touch keys(password 1111 to unlock the screen)


Smart control
Fixture’s and light source’s hours and its temperatures can be readable via menus

Ingress protection
IP65,water, dust and dirt resistant for yearly all-weather applications

Net weight:23.5KG

Sizes:43.1*27.5*57.7CM


【Version:20260528】
Name
Description
Download
Specification
PR-8229(Version:20260528)
User manual
PR-8229(Version:20260528)
