CUBIX 300
Model No.PR-6803
CUBIX 300

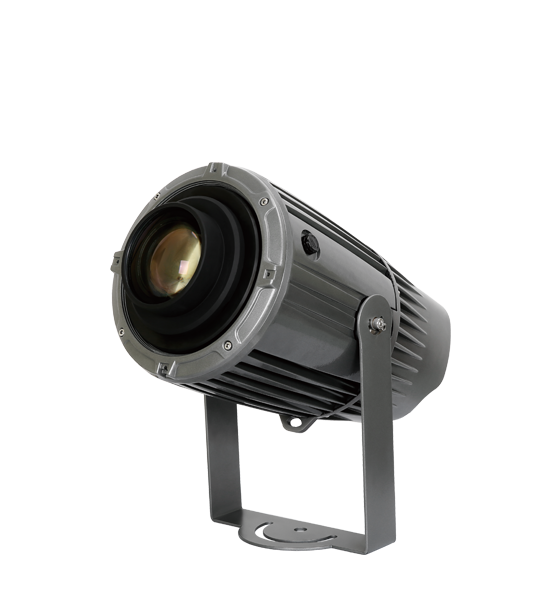

CUBIX 300 is new launched exterior gobo projector, equipped with a 150W bright white LED source. With precise control, 15°~ 45° wide zoom, small and light weight.
Features
Colors
Gobo
Download

Input Voltage

Other Functions

100V~240V AC,50/60Hz

Wireless receiver


LCD display invertible

Input Power

DMX512 interface for firmware upgrade, quick and convenient

170W @ 220V

Over-temperature protection

Maximum current:0.9A


Power factor: PF>0.95

Housing


High tensile cast Aluminum alloy , IP65

Light Source


TX-3636W150FC120-NUVENG-A01  150W LED (50000hours,1pc,White,7500K)

Net Weight


Net weight 9.5Kg

Dimmer

Gross weight 12.8 Kg in cardboard box

Linear Dimmer from 0-100%



Operation Temperature

Strobe

Maximum ambient temperature: 40 ℃

Electronic Strobe 0. -25FP.S with pulse macros



Accessories

Control

Clamp           1     Pc

International standard DMX512 signal control protocol, 5-pin DMX 512 interfaces

Power cord    1    Pc

Master/Slave synchronized Mode

XLR loop cable    2    Pcs

Stand alone mode, preset memory, self test mode, static scene mode

Safety cord    1    Pc

3 operation modes(DMX mode, user memory, preset memory)

User manual      1     Pc



Beam Angle


Beam Angle 15°~45°,linear dimming











Color Wheel


1 color wheel(5 fixed colors+ open)



continual rotation, magnet sensor for positioning







Rotating Gobo



1 rotating gobo wheel,4 Gobos









Name
Description
Download
Specification
CUBIX 300 Spec
User manual
CUBIX 300
