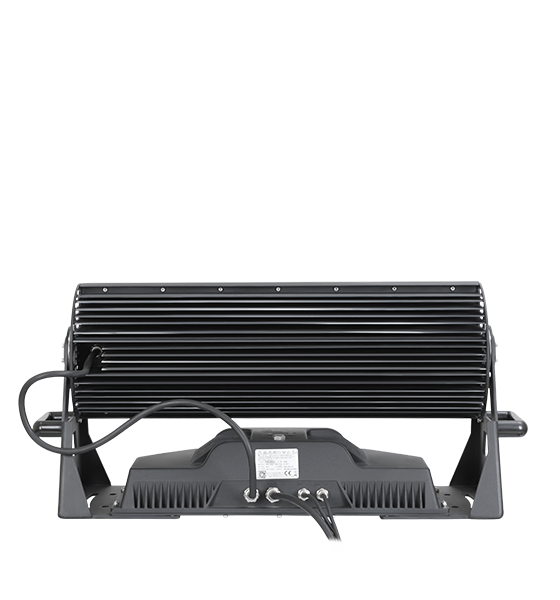

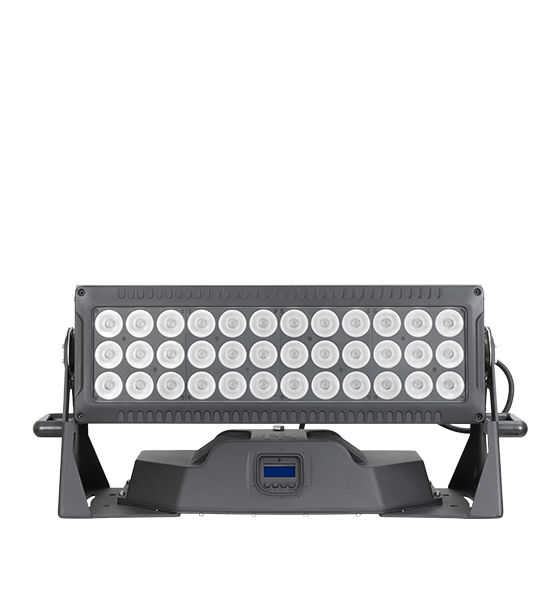

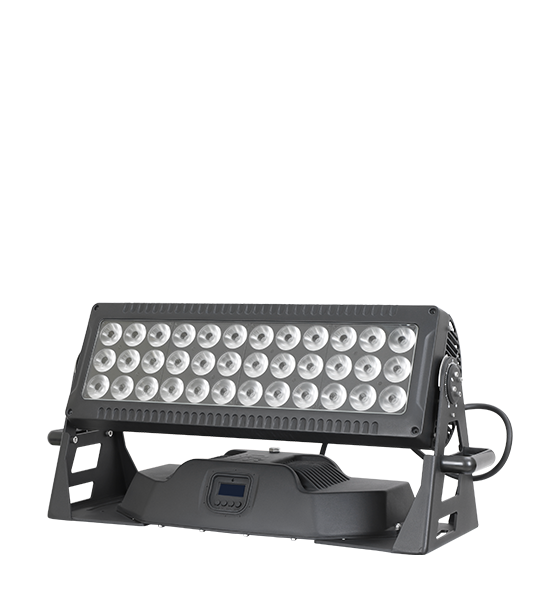

ARC LED 1536
Model No.PR-6260
ARC LED 1536
ARC LED 1536 is a new powerful architectural light, contains PHILIPS 36 pcs 15W LEDs (RGBW 4 in 1). It’s ideal for corporate event, festivals and outdoor stage washes.
Features
Colors
Download

Input Voltages

Other Functions

100-240V AC, 50/60Hz

LED board temperature display

Fixture usage time display

Power Consumption

Brightness level control

540W@230V

Timer control


Parameters like operation mode and etc.

Light Source

transmitted under synchronization

36x15W(RGBW 4 in 1), 50,000 hrs

DMX512 wireless receiver


DMX512 wireless transmitter(optional)

Strobe


Electronic strobe, 0-25 F.P.S

Physical


Housing: high-intensity die-casting aluminum, IP67

Dimmer

Ambient working temperature: -20°C~40°C

0-100% linearly adjustable



Weight

Colors

Net weight: 27kg

R/G/B/W and color mixing , with macro



Packaging

Head Movement

Standard: carton 948x440x473(mm)

Tilt 270°, manual adjustment

Optional: flight case 1040x625x537(mm), 2 in 1



Light Angle

Accessories

Field angle(1/2 peak) θ1/2 : 16°x18°

G clamp, 2 pcs

Field angle (1/10 peak) θ1/10: 34°x 56°

Signal adapter cord, 2 pcs


Safety cord, 1pc

Control

Optional: barndoor 1 set; transparent water proof panel+seal+screwsx8

International DMX512, 3 pins(optional 5 pins) interface


Standard mode 10 channels, extended mode 23 channels,


Master-slave mode, test mode


DMX mode, preset memory mode and user memory mode













Color System


R/G/B/W and color mixing , with macro










Name
Description
Download
Specification
ARC LED 1536 Spec
User manual
ARC LED 1536
