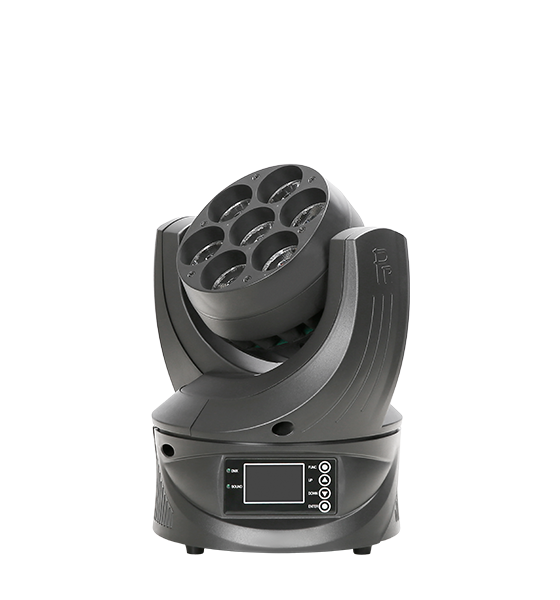

XLED 2007 Beam
Model No.PR-8123
XLED 2007 Beam
This mini unit succeeds all the advantages from the XLED 336 Beam. It features Dot-matrix control in the from of 2-2-2-1, touch key, sound operation. Additionally it is able to rotate endlessly.
Features
Colors
Download
Light Source

Other Functions

OSRAM OSTAR 7x15W LEDs(RGBW, 4 in 1), 50000 hrsStandard mode 12 channels and extended mode 20 channels



Input Voltages

Other Functions

100V~240V AC, 50/60Hz

DMX512 wireless receiver, (optional: DMX512 wireless transmitter)


pixel control in the form of 2-2-2-1
Power Consumption



170W@220V

Housing


High-temperature-resistant engineering plastic
Strobe

IP20

Electronic strobe, 0-25 F.P.S



Net Weight

Dimmer

4.36kg

0-100% linearly adjustable






Light Angle



Beam angle(1/2 peak): 6°, filed angle(1/10 peak): 12°



Head Movement



Pan 720° or endless, tilt 270° or endless with auto-positioning





Control



DMX512, 5 pins(optional 3 pins) intereface




Channels



Standard mode 17 channels and extended mode 30 channels






Color System


RGBW and color mixing, with macros






Color Temperature


Linear color temperature correction from 2,700K to 10,000K


















Name
Description
Download
Specification
XLED 2007 Beam Spec
User manual
XLED 2007 Beam
Certificates
XLED 2007 Beam CE
DWG
XLED 2007 Beam
Lighting Library
MA2,Avolites
