AQUA LED 1500 Spot
Model No.PR-8178A

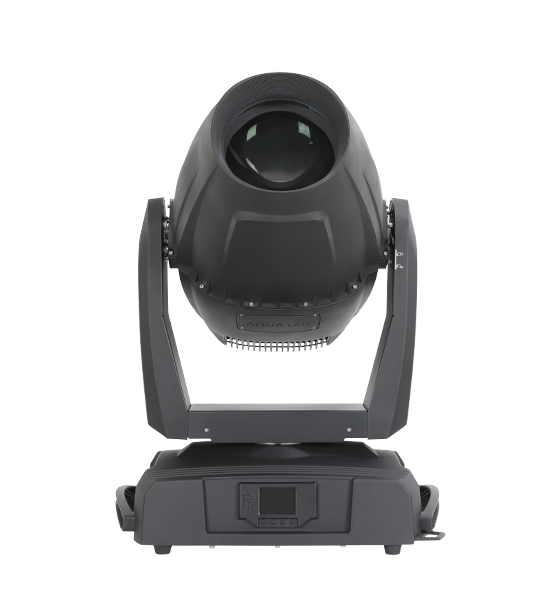

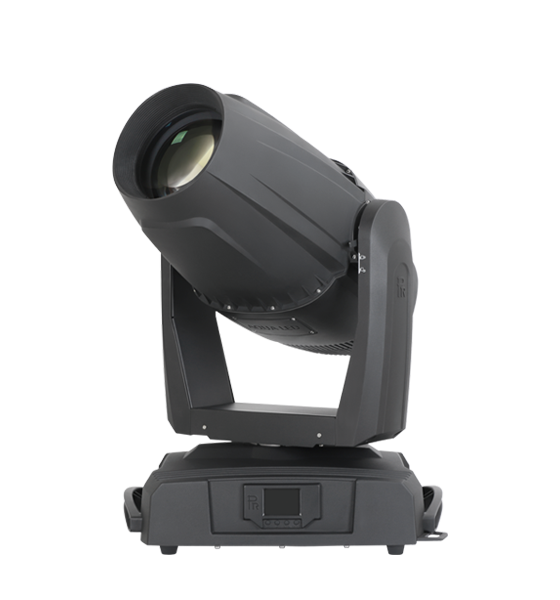

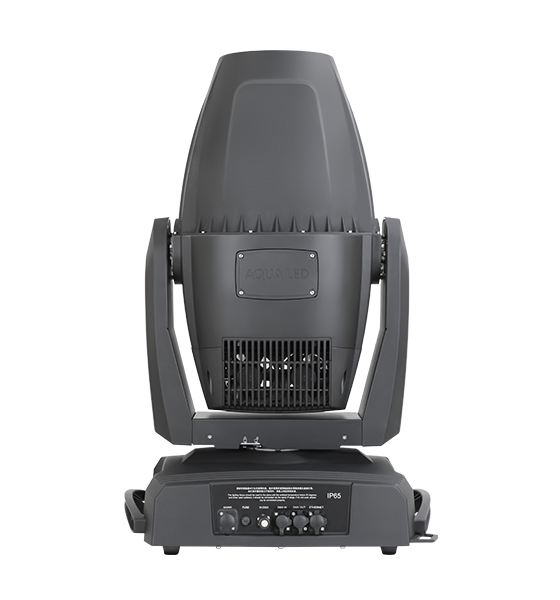

AQUA LED 1500 Spot
The AQUA LED 1500 Spot is an innovative IP65 rated moving head spot luminaire which offers complete protection against rain and humidity, and maintains a perfect working temperature for fixtures even in hot or cold conditions. It features 600W LED engine, 8000K, 6°~56° motorized zoom, full CMY color mixing with macros, 1color wheel with 6 dichroic color filters plus open and 2 rotating gobo wheels.
Features
Colors
Gobo
Download

Input Voltages

Light Angle

90-240V AC, 50/60Hz

6°~56°


Power Consumption

Control

870W@230V, 900W@100V

International DMX512, 5 pins(optional 3 pins) interface


Short mode 27 channels, standard mode 31 channels and 38 channels in extended mode

Light Source

RDM protocol

600W (8,000K, 20,000 hrs), Ra≥70

Art-Net protocol


Master/slave mode, stand-alone mode, self-test mode

Strobe

Electronic strobe 0.3-25 F.P.S with macros

Other Functions


Adjustable pan & tilt speed

Dimmer

LCD display screen

Electronic dimmer 0-100% linearly adjustable

Fixture and lamp usage time display


Modular structure for easy maintenance

CTO

DMX512 wireless receiver

0-100% linear CTO

DMX512 wireless transmitter(optional)



Prism

Physical

One 4-facet prism, bi-directionally rotatable at variable speed

Housing: cast aluminum and high temperature UV resistant ABS, IP65


Ambient temperature: maximum 40°C

Frost


One frost filter, linear frost effect

Weight

Net weight: 54Kg

Effect


1 Exchangeable graphic effect wheel, bi-directional rotation with variable speeds

Packaging


Standard: carton 855x655x815(mm)

Iris

Optional: flight case 695x535x870(mm)

5-100% linearly adjusted with macros



Accessories

Focus

G clamp, 2 pcs

Motorized linear focus

5 Pins XLR connector, 1 set


Safety cord, 1 pc

Head Movement

Power cord, 1 pc

Pan 540°, tilt 270° with auto position correction
Optional: Ω clamp, 2 pcs







CMY


CMY linear color mixing with macros







Color Wheel


1 Color wheel: 6 color filters plus open



Half color effect and variable speed rainbow effect



Stepping/linear color changing




Rotating Gobo



2 Rotating gobo wheels: each with 6 replaceable gobos plus open, glass or metal gobos can be fixed


Bi-directionally rotatable and wheel scrolling at variable speed, shakable at variable speeds







Name
Description
Download
Specification
AQUA LED 1500 Spot Spec
User manual
AQUA LED 1500 Spot
Lighting Library
MA2,Avolites
