XR 350B BWS
Model No.PR-2392
XR 350B BWS

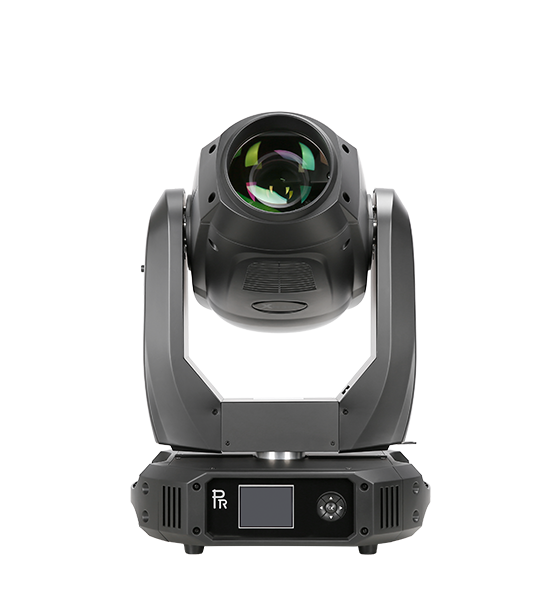

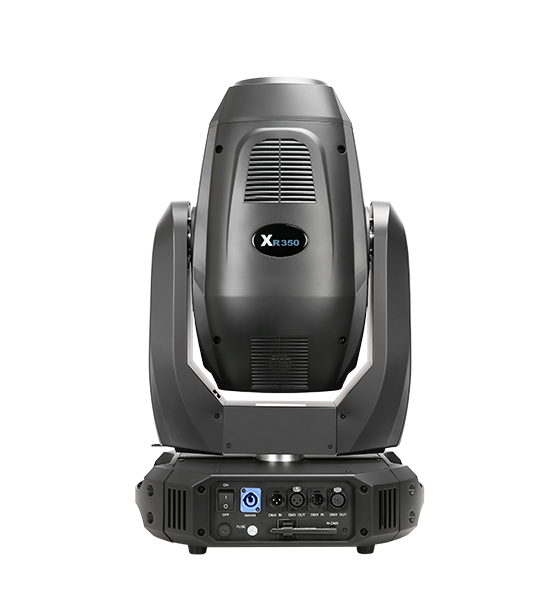

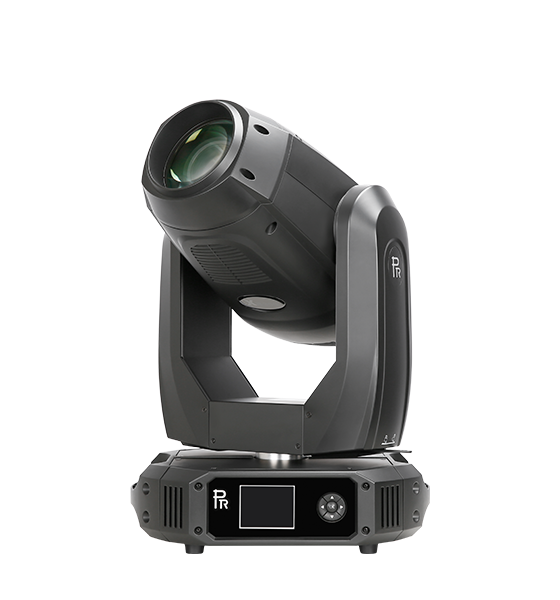

The XR 350B BWS is a hybrid versatile 3-in-1(Beam, Wash, Spot) luminaire, 2.3° to 10° zoom in beam mode, 5° to 40° zoom in spot mode and 16° to 50° zoom in wash mode. Light weight and easy maintenance.
Features
Colors
Gobo
Download
Light Source

Head Movement

PHILIPS 17R 350W(7,000K), 1500 hrsPan 540º and tilt 270º with auto position correction and adjustable speed



Input Voltages

Control

100V~240V AC, 50/60Hz

DMX512, 5 pins(optional 3 pins) intereface




Power Consumption

Channels

470W@220V

Short mode 23 channels, standard mode 28 channels and extended mode 33 channels




Strobe

Other Functions

Double shutter blades, 0.3-25 F.P.S with macro
DMX512 wireless receiver, (optional: DMX512 wireless transmitter)




Dimmer

Housing

0-100% linearly adjustable

High-strength die-cast aluminum and high-temperature-resistant engineering plastic


IP20
Prism



2 Prisms(standard: 8-facet and 16-facet), bi-directionally rotating at variable speeds(optional: 3-facet, 16-facet, gradient and linear prism)
Net Weight
22.2kg




Frost


1 Frost filter



Diffuser



1 Independent diffuser(optional even beam mode)





Focus/Zoom

DMX linear focus and zoom






Light Angle


Beam mode: 2.3°, Spot mode: 2.3°~ 40°, Wash mode: 16°~ 50°



CMY


CMY linear mixing system with macros






Color Wheel


1 Color Wheel: 13 colors+CTO plus open


Rainbow effect with bi-directional and variable speeds


Stepping/linear color changing



Fixed Gobo



1 Fixed Gobo Wheel: 10 replaceable gobos plus open

Shaking at variable speed and bi-directional scrolling effect





Rotating Gobo



1 Rotating Gobo Wheel: 9 replaceable gobos plus open
Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect






Name
Description
Download
Specification
XR 350B BWS Spec
Lighting Library
MA2,Avolites
