XR 380 Beam
Model No.PR-2345

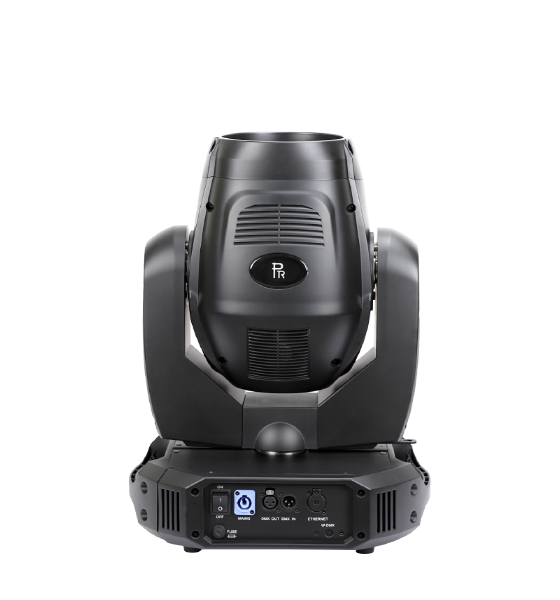

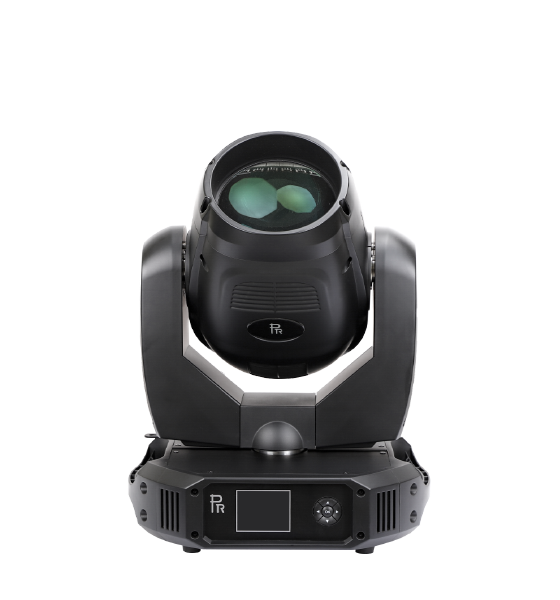

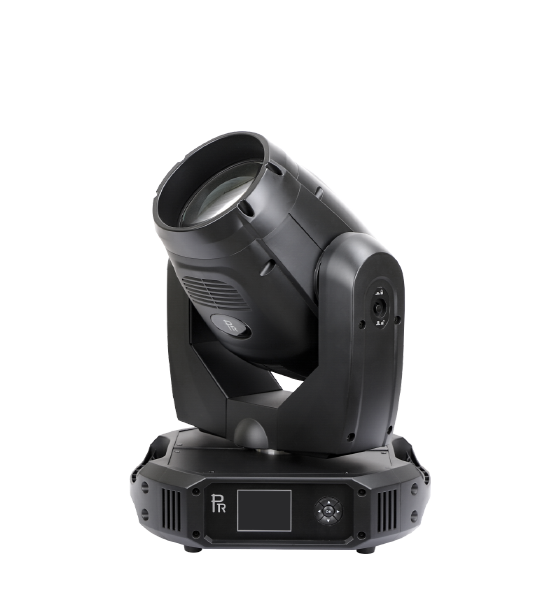

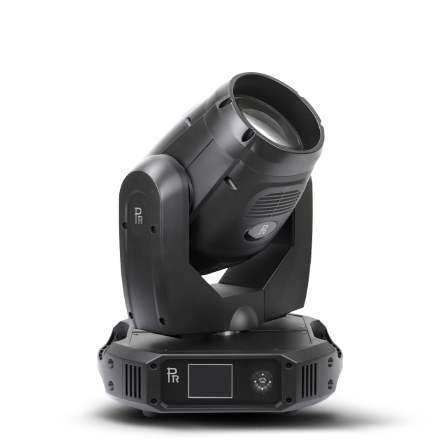

XR 380 Beam
XR 380 Beam is an energy saving and environmentally friendly Beam fixture with low power consumption, high luminous efficacy. It has a solid beam with sharp edge, long projecting distance and luminance up to 480,000 lux at distance of 10 meters. It’s compact and with low weight and has fast head movements. Its light source has long life, low power consumption, high luminous efficacy and other advantages.
Features
Colors
Gobo
Download
ELECTRIC PARAMETERS
Input voltage 100V~240VAC,50/60Hz
Input power 550W@100V
500W@220V
Powerfactor: PF>0.9

LAMP:
Phlips MSD Platinum Flex 300S
ColourTemperature 7800K
ManufacturersRatedLampLife 6000hrs (Reference the Spec. ofLightsource)

PRISM/EFFECTWHEEL
3Prisms:standard : individual 8-facet prism;16-facet prism+ linear prism+ Frost+ Open (bi-directionalrotation)
(Optional 3-16 facet prismor gradient prism)

FOCUS
0-100% linearly adjustable by DMX

STROBE:
Double shutter blades, 0.3~20 F.P.S

HEADMOVEMENT:
Pan 540º,Tilt 270º with auto position correction
BEAMANGLE
0°~2.3°, Linear zoom

CONTROL
DMX512 and 5 pin interfaces
17channelsin shortmode, 19channelsin standardmode 21 channelsin extendedmode
Adjustablemode

OTHER FUNCTIONS
AdjustablePan&Tiltspeed
Fixture and lamp usage time display
Modular construction for easymaintenanceDMX512wirelessreceiver
DMX512wirelesstransmitter(optional)

HOUSING
Composite plastic,IP20

WEIGHT
18 Kg

RUNNINGTEMPERATURE
Ambienttemperature 40°Catmaximum





  【Version:20230817】

1ColorWheel:
13 diachronic colorfilters pluswhite
variable speed and bi-directionalrainbow effect
linear color changing is available
1 Fixed gobowheel :
16 interchangeable gobos+ white
Shaking and bi-directional wheelscrolling at variable speeds

RotatingGoboWheel:
1Rotating gobowheel: 12 gobos+ Open
Shaking and bi-directional wheelscrolling at variable speeds
Gobo changeable

Name
Description
Download
Specification
XR 380 Beam Spec
User manual
XR 380 Beam
