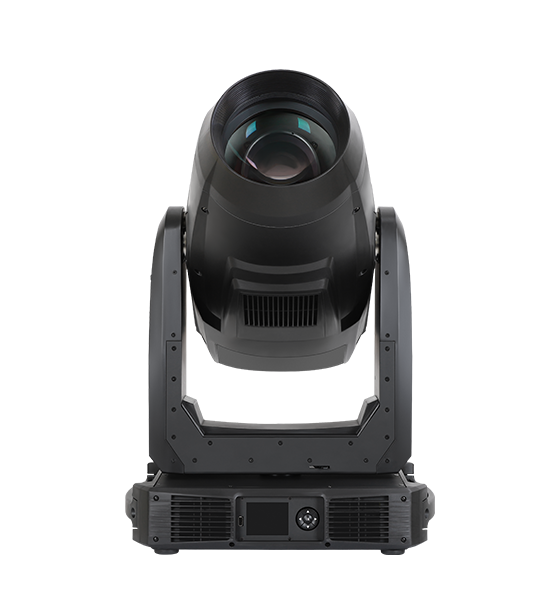

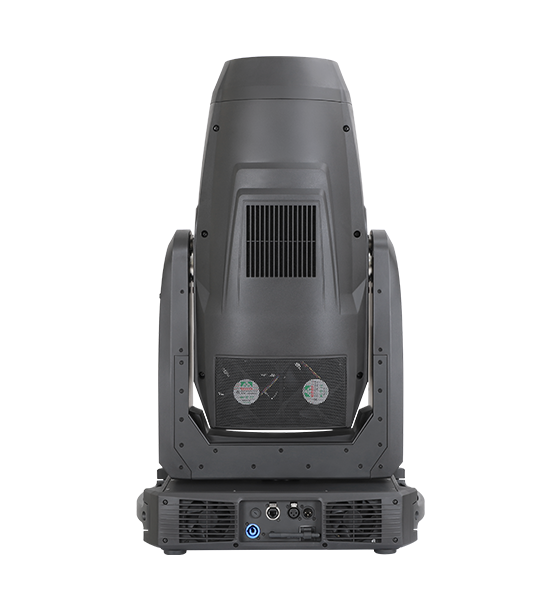

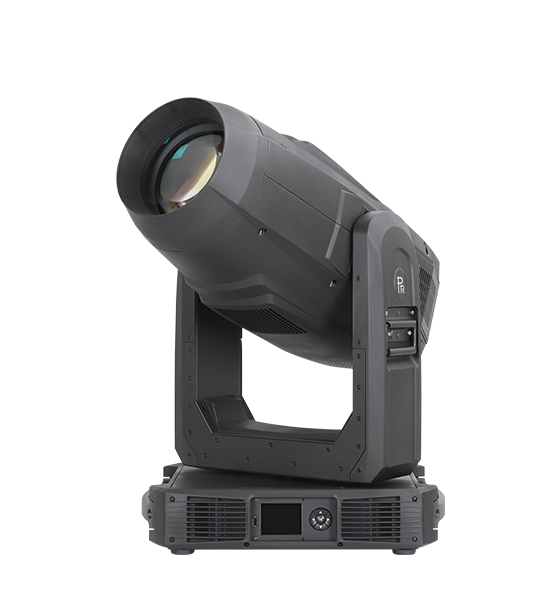

XRLED 3000-W Framing
Model No.PR-8137
XRLED 3000-W Framing
The XRLED 3000-W Framing is the latest advanced 1200W white LED moving head. In addition to its complete range of spotlight effects, it has an exclusive framing system with endless rotating framing module, designed and patented by PR. It is extremely bright, very powerful and highly efficient for any projects.
Features
Colors
Gobo
Framing
Download

Input Voltages

Control

100-240V AC, 50/60Hz

International DMX512, 5 pins interface


Short mode 41 channels, standard mode 46 channels and extended mode 61 channels

Power Consumption

RDM protocol

1550W@220V

Art Net protocol


Master-slave mode, stand-alone mode, self-test mode

Light Source


1200W white LED( 6,500K), 20,000 hrs, CRI: Ra≥70

Other Functions


Adjustable pan & tilt speed

Strobe

Color touch panel display in English, and its brightness and contrast adjustable

Electronic strobe, 0.3-25 F.P.S

Fixture and lamp usage time display


Built-in analyzer for easy fault finding, error messages

Dimmer

Setup options by chargeable battery inside without power connection

0-100% linear adjustment



Software version display

CTO

Modular structure easy for maintenance

0-100% linear CTO system

Network interface


DMX512 wireless receiver

Prism

DMX512 wireless transmitter(optional)

One 4-facet prism, one linear prism, bi-directionally rotatable at variable speed, indexable



Weight

Frost

Net weight: 45kg

Light and heavy double frost filters



Packaging

Effect

Standard: carton 555x655x820(mm)

1 Replaceable animation wheel, bi-directionally rotatable at

Optional: flight case 725x625x855(mm)

variable speed



Physical

Iris

Housing: composite plastic, IP20

5-100% linear adjustment with macro

Ambient working temperature: maximum 40°C



Focus

Accessories

Motorized linear focus

G clamp, 2 pcs


5 pins XLR connector, 1 set

Zoom

Safety cord, 2 pcs

Motorized linear zoom

Power cord, 1 pc


Optional: Ω clamp, 2 pcs

Head Movement


Pan 540º, tilt 270º with auto position correction


Swap and invert functions of pan and tilt




Light Angle


6°~54° with autofocus










CMY


CMY linear color mixing with macros







Color Wheel


2 Color wheel: each with 6 dichroic colors filters plus open



Half color effect, variable speed rainbow effect



Stepping/linear color changing is optional






Color Temperature



0-100% linear color temperature correction



Fixed Gobo



1 Rotating gobo wheel: 6 replaceable gobos plus open, glass or metal gobos can be fixed



Bi-directionally rotatable and wheel scrolling at variable speed, indexable



Shakable at variable speeds






Rotating Gobo



1 Fixed gobo wheel: 7 replaceable gobos plus open






Framing



4 Sets of framing blades

Endless rotation, graphics at different sizes and shapes, curtain effect
