AQUA 480 Beam
Model No.PR-2469

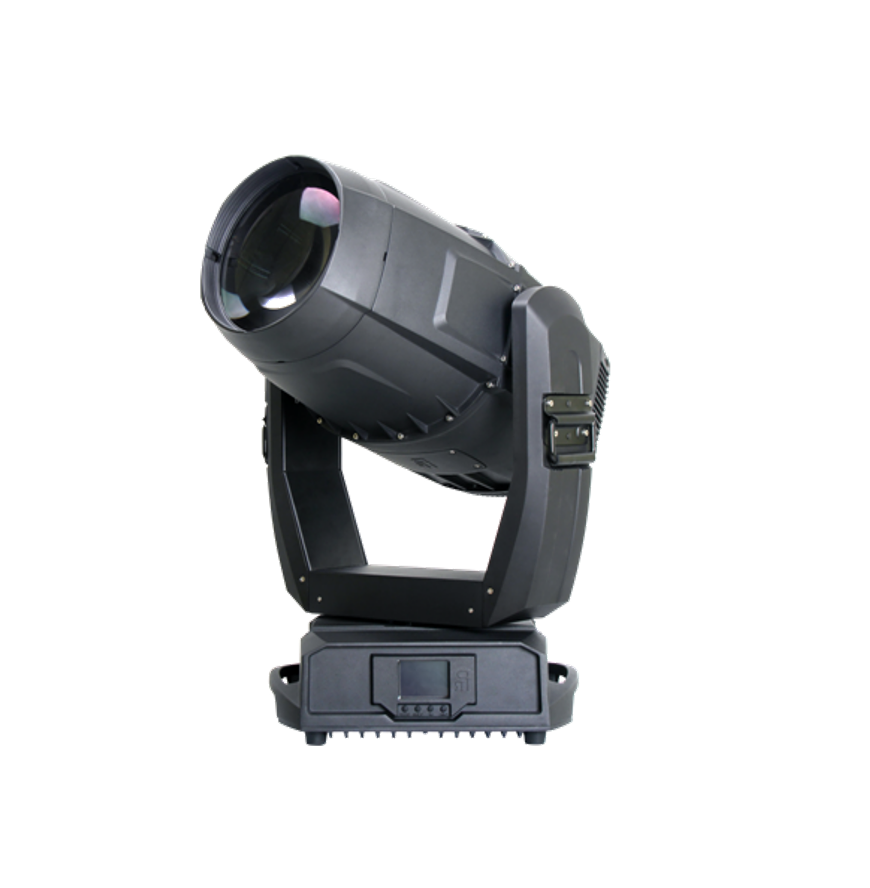

AQUA 480 Beam
AQUA 480 Beam is waterproof-IP65 and large aperture beam. It can produce sharp beam effect(beam angle is 3.1°). The central illumination is 182, 334 Lux at 20m and 81,037 Lux at 30m. It can provide a number of effects combined with CMY linear color mixing system, 18 fixed gobos and 7 rotating gobos. It is ideal for your outdoor entertainment, concert stadium and all kinds of activities.
Features
Colors
Gobo
Download

Input Voltages

Light Angle

100-240V AC, 50/60Hz

Beam angle: 3.1°


Power Consumption

Other Functions

650W@220V

Adjustable pan & tilt speed


LCD display screen

Light Source

Fixture and lamp usage time display

USHIO PR 480(480W), (6,900±300K, 1,500 hrs)

Modular structure for easy maintenance


DMX512 wireless receiver

Strobe

DMX512 wireless transmitter(optional)

Double shutter blades, 0.3-25 F.P.S



Physical

Dimmer

Housing: cast aluminum and high temperature UV resistant ABS, IP65

0-100% linearly dimming

Ambient temperature: maximum 42°C



Prism

Weight

Two individual prisms(standard: 8-facets and 16-facets)

Net weight: 38Kg

Bi-directionally rotating at variable speeds


Optional: 3-facet, 16-facet, gradient and linear prisms

Packaging


Standard: carton 745x665x600(mm)

Frost

Optional: flight case 620x570x780(mm)

One frost filter



Accessories

Focus

G clamp, 2 pcs

DMX linear focus

5 Pins XLR connector, 1 set


Safety cord, 1 pc

Head Movement

Power cord, 1 pc

Pan 540°, tilt 270° with auto position correction

Optional: Ω clamp, 2 pcs


Control


International DMX512, 5 pins interface


RDM control protocol


Short mode 19 channels, standard mode 26 channels and extended mode 29 channels


Self-test mode











CMY


CMY linear color mixing system with macros







Color Wheel


1 Color wheel: 11 dichroic color filters+CTO plus open



Rainbow effect with bi-directional and variable speeds



Stepping/linear color changing




Fixed Gobo



1 Fixed gobo wheel: 18 gobos plus open



Bi-directionally rotatable, and shakable effect at variable speeds







Rotating Gobo



1 Rotating gobo wheel: 7 interchangeable gobos plus open


Bi-directionally rotatable, and shakable at variable speeds







Name
Description
Download
Specification
AQUA 480 Beam
User manual
AQUA 480 BEAM
Certificates
AQUA 480 BEAM CE
Lighting Library
MA2,Avolites
