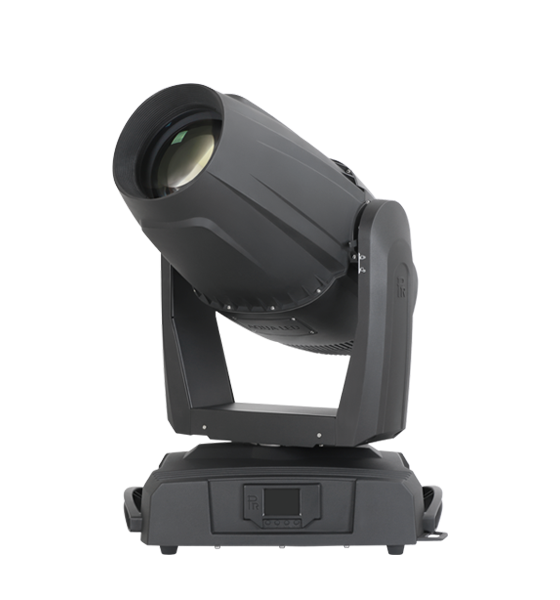

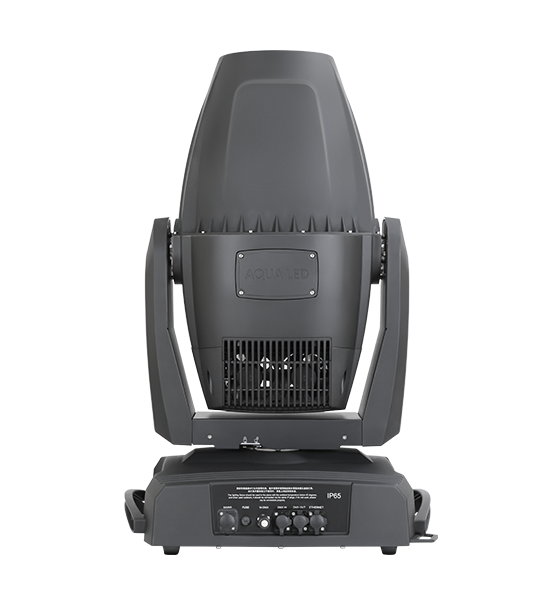

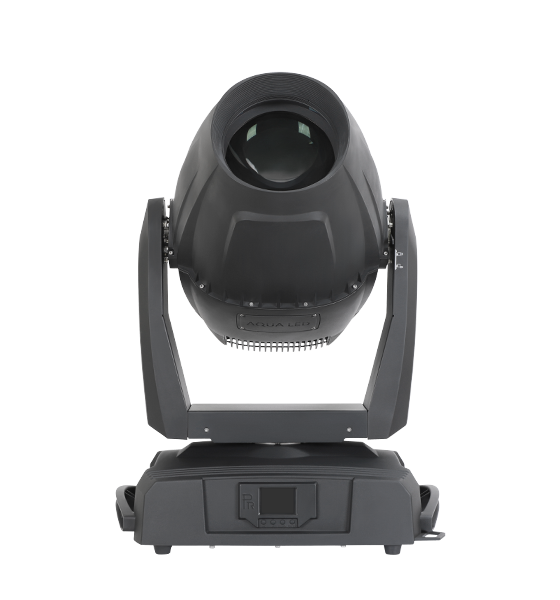

AQUA LED 1800 Framing
Model No.PR-8169
AQUA LED 1800 Framing
PR Lighting recently announced their latest waterproof moving head AQUA LED 1800 Framing, a perfect outdoor solution in IP65-rated body. AQUA LED 1800 Framing has become the new flagship of AQUA Series. It features a potent 800W white LED engine that offers a 20,000-hour operational life, also includes features like CMY+CTO colour mixing with CRI≥90, PR patent four-blade framing shutter system with endless rotation, full curtain effect, a colour wheel , animation wheel, a zoom range of 6° to 56°, prism, frost, static and rotating gobo wheels, and 16-bit dimming. Designed to operate in the most extreme situations, AQUA LED 1800 Framing can withstand arid environments, heavy rainfall, and sudden climatic variations.
Features
Colors
Gobo
Framing
Download
Light Source

Iris

800W white LED(8,000K), 20,000 hrs5 - 100% linearly adjustable with macros



Input Voltages

Focus/Zoom

100V~240V AC, 50/60Hz

Motorized linear focus and zoom




Power Consumption

Light Angle

1100W@220V

6°~ 56°




Strobe

Head Movement

Double shutter blades, 0.3-25 F.P.S

Pan 540º and tilt 270º with auto position correction and adjustable speed




Dimmer

Control

0-100% linearly adjustable

DMX512, 5 pins(optional 3 pins) intereface




CTO

Channels

0-100% linear CTO system

Short mode 35 channels, standard mode 38 channels and extended mode 54 channels


Prism

Other Functions

1x4-facet prism, bi-directional rotation with variable speeds, with indexing function
DMX512 wireless receiver, Art-Net, (optional: DMX512 wireless transmitter)




Effect

Housing

1 Interchangeable graphic effect wheel, bi-directional rotation with variable speeds
High-strength die-cast aluminum and high-temperature-resistant engineering plastic

IP65

Frost



1 Frost filter, linear frost effectNet Weight



56kg


CMY


CMY linear mixing system with macros






Color Wheel


1 Color Wheel: 6 colors+ white


Half color effect, rainbow effect with bi-directional and variable speeds






Fixed Gobo



1 Fixed Gobo Wheel: 7 replaceable gobos plus open

Shaking at variable speed and bi-directional scrolling effect





Rotating Gobo



1 Rotating Gobo Wheel: 6 replaceable gobos plus open, glass and metal gobos can be fixed
Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect






Framing



1 Framing Module: 4 framing blades, Framing module endless rotation with many graphic of different sizes and shapes, curtain effect














Name
Description
Download
User manual
AQUA LED 1800 FRAMING
